How to configure Single-Sign-On with SAML in REACH

ARTICLE: How to configure Single-Sign-On with SAML within your Reach Portal


You can configure Single Sign On using SAML directly within your REACH portal at System Configuration > Authentication

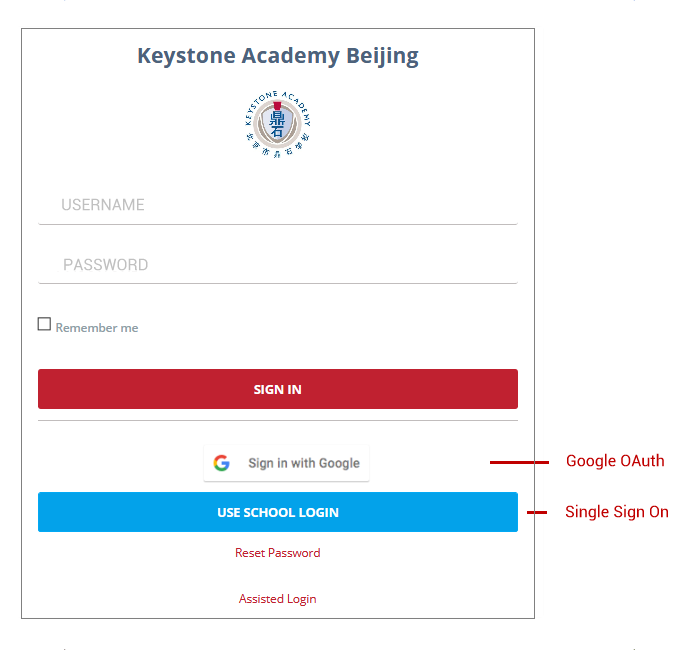

Single Sign In will appear on the login screen for REACH with access to use the your school's Single Sign In authentication to access REACH.



How to Configure SAML in REACH

1.  Create a SAML application in your IdP to represent REACH.
  1. This will need an "Entity Identifier", which for REACH will be https://<REACH Portal address>
  2. This will also need an "Assertion Consumption Service URL" or "ACS URL", which for REACH will be https://<REACH Portal address>/samlACS

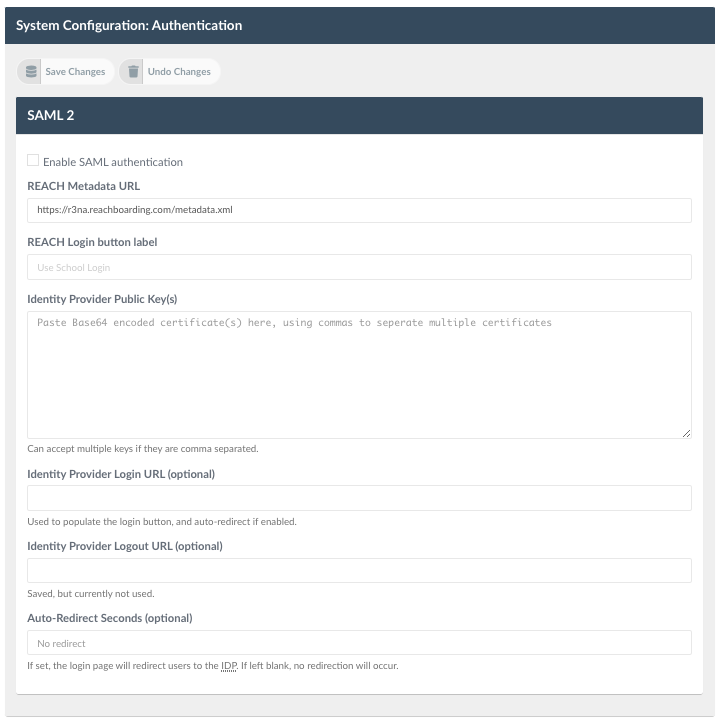

2.  As part of, or at the end of this creation process, the IdP will typically expose some information for copying or downloading, which you will need to put into the Authentication page in REACH (System Configuration > Authentication)
  1. Public signing certificate - enter this the Identity Provider Public Key(s) field
  2. SSO URL - enter this into the Identity Provider Login URL field




Suggested Support resources for various systems

You can access some official support guides for varioius systems at the links below:
  1. for Google GSuite go to
    https://support.google.com/a/answer/6087519?hl=en

  2. for AD FS you can go to
    https://docs.microsoft.com/en-us/windows-server/identity/ad-fs/operations/create-a-relying-party-trust

  3. for Azure aD you can go to
    https://docs.microsoft.com/en-us/azure/active-directory/manage-apps/add-application-portal-setup-sso
